There are different versions of the encoder, which vary in shaft shape. Some units have a knurled-shaped shaft, while others have a D-shaped shaft. Since we only offer knobs and encoders with a D-shaped shaft, we have assembled a set that includes both components to enable an encoder replacement for all versions. Technical skills, particularly soldering, are required for replacing the encoder. A detailed installation guide is included in the set.

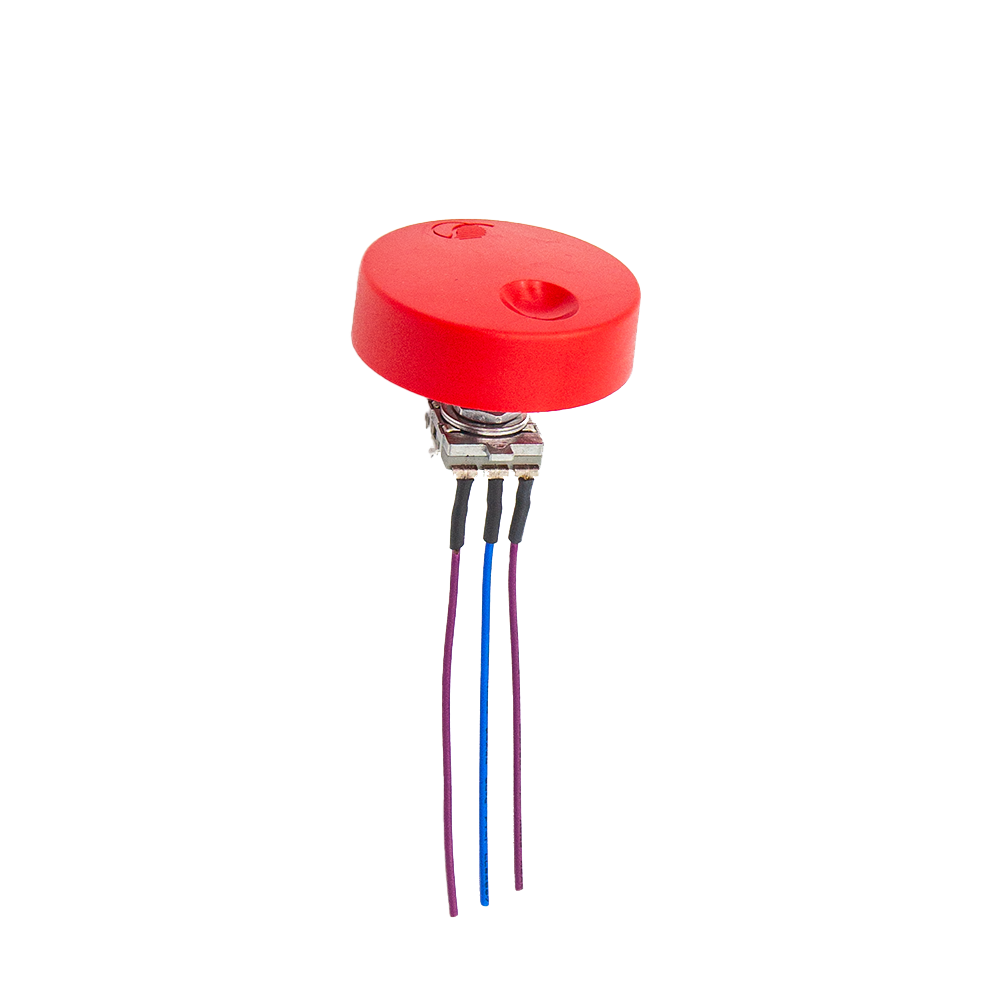

Includes:

1 x Encoder with click

• Steps: 24
• Dimensions: 16 mm
• Shaft length: 20 mm
• D-shaft 6 mm

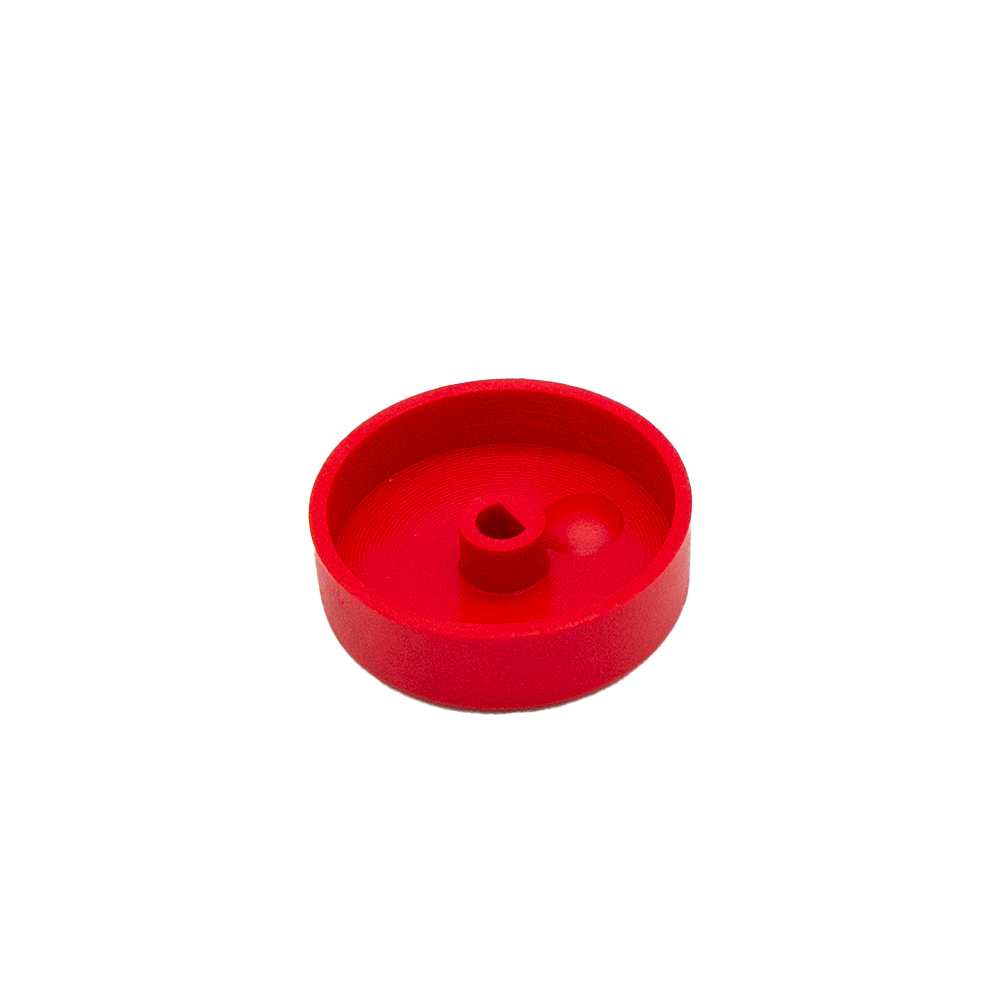

1x Knob V2, 45mm, round, red

• Material: plastic
• Diameter: 45 mm
• Colour: red
• with indicator
• for D-shaft 6 mm

3x Wires for soldering

Warning: This replacement should only be performed by qualified personnel. The manufacturer is not responsible for any damage, injury, or malfunction that may occur if the procedure is attempted by untrained individuals. Always ensure that the device is unplugged and that all internal components are fully discharged before beginning any work. Incorrect handling of electronic components can result in serious injury, electric shock, or irreparable damage to the device.

Download:

Instructions EN /DE
